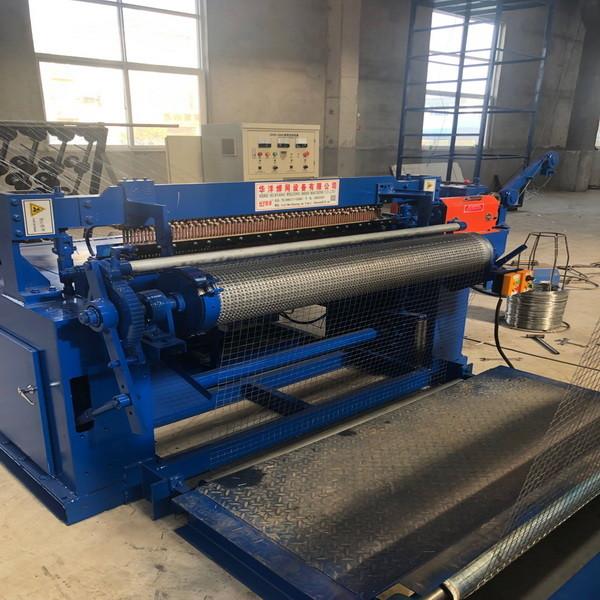

Used For Farm Roll Mesh Welding Machine
1. Product description
Used for farm roll mesh welding machine is used for making wire mesh. The cross wire is off-coiling from the motorized pay-off station. Wire is pulled by the buffer feeding rollers, and goes through the pre-straighteners, buffer, servo-feeding rollers and straighteners.The needed length of wire is advanced into the welding station, cut at exact length and positioned for welding, by special devices.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 4 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 4 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 4 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 4 feet | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 4 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The used for farm roll mesh welding machine is for construction, hollow wall reinforcement, increased elasticity, prevent cracks in the wall, it is a good building materials. Is used for the foundation, wall, etc. have a place of strength and stability as well as local high local stress requirements at each of the key used in the reinforcement of brick and block construction of cement mortar, so that brick-and-mortar form an integral whole structure, the maximum stress and shock absorption, excellent shock cracking, good building materials.
4. Advantages
a. Line wire loop and balance system to ensure wire mesh accuracy.
b. Line wire vertical straightening system to provide high quality.
c. Welding pressure steplessly adjust to apply multiple wire diameter.
d. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.
e. To strengthen easy operation of machine,we use proximity switch between upper and lower welding heads,when cross wire doesn't reach,the machine will stop automatically.
