Brand Name : Huayang
Model Number : L-DHW
Certification : CE
Place of Origin : Hebei province, Huanghua city
MOQ : 1 set
Price : $8000-$16000/set
Payment Terms : T/T
Supply Ability : 60 sets/month
Delivery Time : 60 days
Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name : Automatic PLC Touch Screen Weld Mesh Manufacturing Machine
Machine type : Roll forming machine
Condition : New
Dimension(l*w*h) : 2500*3000*1450mm
After-sales service provided : Video technical support
Origin : China
Roll length : 120m
Trademark : Huayang
Life Time : More Than 10 Years
1. Product description
The automatic PLC touch screen weld mesh manufacturing machine is used for making wire mesh. The main body frame using thick steel plate and steel, that make the main structure is more fastness,and compact. The weft feeding system, the stepper motor automatically droping the weft automatic, it make the placed more accurately. Pulling mesh system adopts servo motor to pull the network, making the size of the pulling mesh more standard and accurate,and can adjust the cross wire distance at any size.
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic PLC touch screen weld mesh manufacturing machine is used in interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries. Common uses for welded wire mesh, or steel mesh include: fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.
4. Advantages
a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
b. It has advantages of reasonable design, low noise, stable working, easier operation etc.
c. we can design the machine according to your wire diameter,mesh hole size and so on.
d. Good quality and famous brand motor and gearbox, equipped with inverter.
e. Raw materials can be galvanized wire, black wire and stainless steel wire.
![]() |

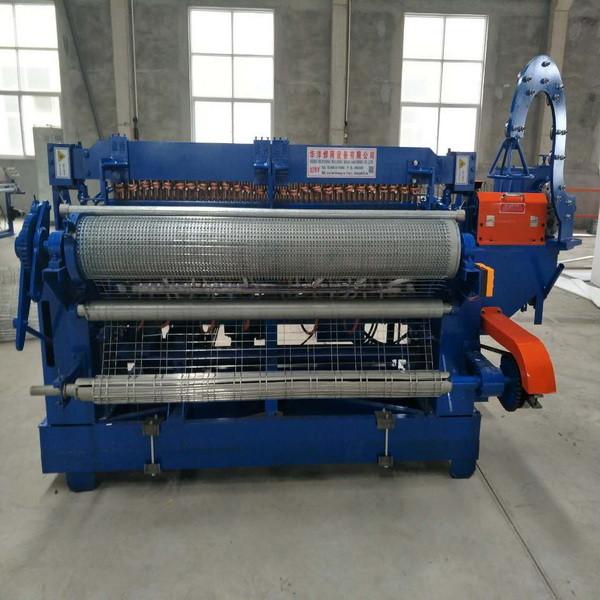

Huayang PLC Weld Mesh Manufacturing Machine 120m Length Chicken Cage Images |
