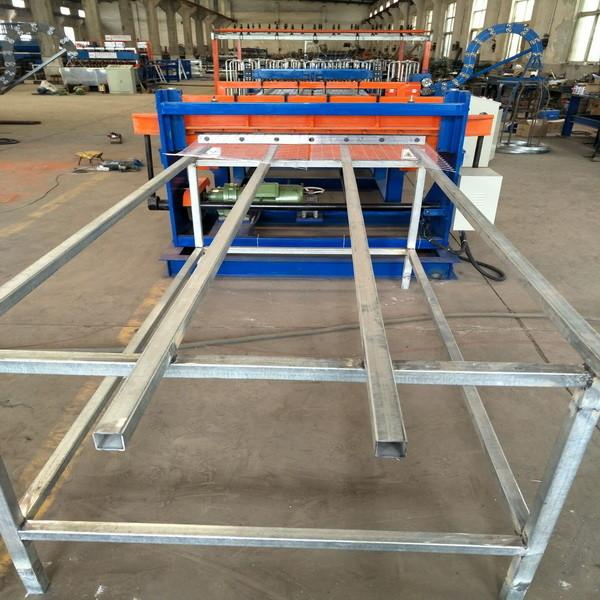

Reinforce Steel Mesh Pneumatic Spot Welding Machine
1. Product description
Reinforce steel mesh pneumatic spot welding machine is used for making wire mesh. Main unit: Welded with thick steel sheet and section steel, strong and concise.Welding electronic control system: PLC digital system, one time pressing, separate welding, precise control and stable function. Wire laying devices: Auto weft wire feeding device, easy to handle, high welding speed.Wire mesh opening setting: PLC digital control.Weft wire arranging: Auto arranging. Inner transformer: High efficient welding transformer, with 8 grade adjustment.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return |
| Std trans.spacing | >=25mm-stepless adjustable |
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 |
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar |
| Long material | Straight bar/rod |
| Control mode | PLC programming servo motor stepper |
| Mesh diagonal error | <=2 |
| Mesh overall error | <=2 |
| Air pressure | >=0.7 |
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel |
3. Application area
The reinforce steel mesh pneumatic spot welding machine can be used for mesh fence, casting roof mesh in the building, Construction ( 3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh,animal cages).
4. Advantages
a. Using the lower-part electrode and wire putting device connected as a whole structure, the adjustment of the vertical line spacing of the mesh more convenient.
b. Equipment to strengthen the damping process, effectively reducing noise.
c. Intelligent and humanization.
d. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.
e. To strengthen easy operation of machine, we use proximity switch between upper and lower welding heads, when cross wire doesn’t reach, the machine will stop automatically.
